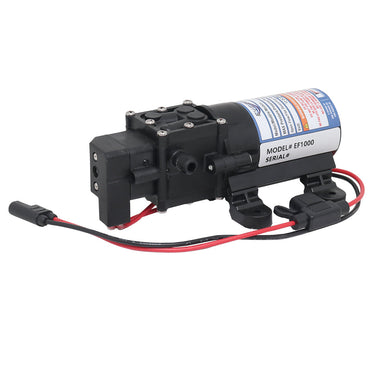

EF1000 1.0GPM Diaphragm Pump

Pump Features: When it comes to fluid transfer applications, the Everflo 12V On-Demand 1.0GPM Diaphragm Pump is the king of the hill. This pump is loaded with features such as a Honeywell Micro Switch™, durable Viton valves & Santoprene™ diaphragm, fiberglass-reinforced polypropylene pump manifold with 3/8” Hose Barb connection. Other features include a silky smooth valve design for faster primes & a unique pressure switch that slowly cycles the pump to reduce wear on the motor & switch. Save battery power with the automatic power switch that turns off pump when no flow is needed. CE approved & has standard mounting pattern for quick installation. Approved for use with Round-Up® & other agricultural brand herbicides & insecticides.

Ideal Water Fluid Applications: This Everflo 1.0GPM diaphragm pump is designed to handle a variety of water delivery applications including, but not limited to: agricultural spraying (spot or broadcast), de-icing (salt brine), mobile pressure washing systems and water transferring.

Product Specs

Max Pressure Max Flow Power Supply Max Amps Self-Priming Ports Max Fluid Temp Weight (Dry)
40 PSI 1.0 GPM 12 Volt Battery 4.0 Yes (Up to 4') 3/8" Hose Barb 140° F 1.3 lbs
Part # Packaging Style UPC
EF1000 Bulk N/A
EF1000-BOX Boxed 81448501039-9
EF1000-BC Barcoded 81448501342-0

Key Product Features

  • No Cool Downs Required with 100% Cycle
  • Includes Honeywell Micro Switch for Quick Starts
  • Approved For Use With Round Up & Other Herbicide/Pesticide Brands
